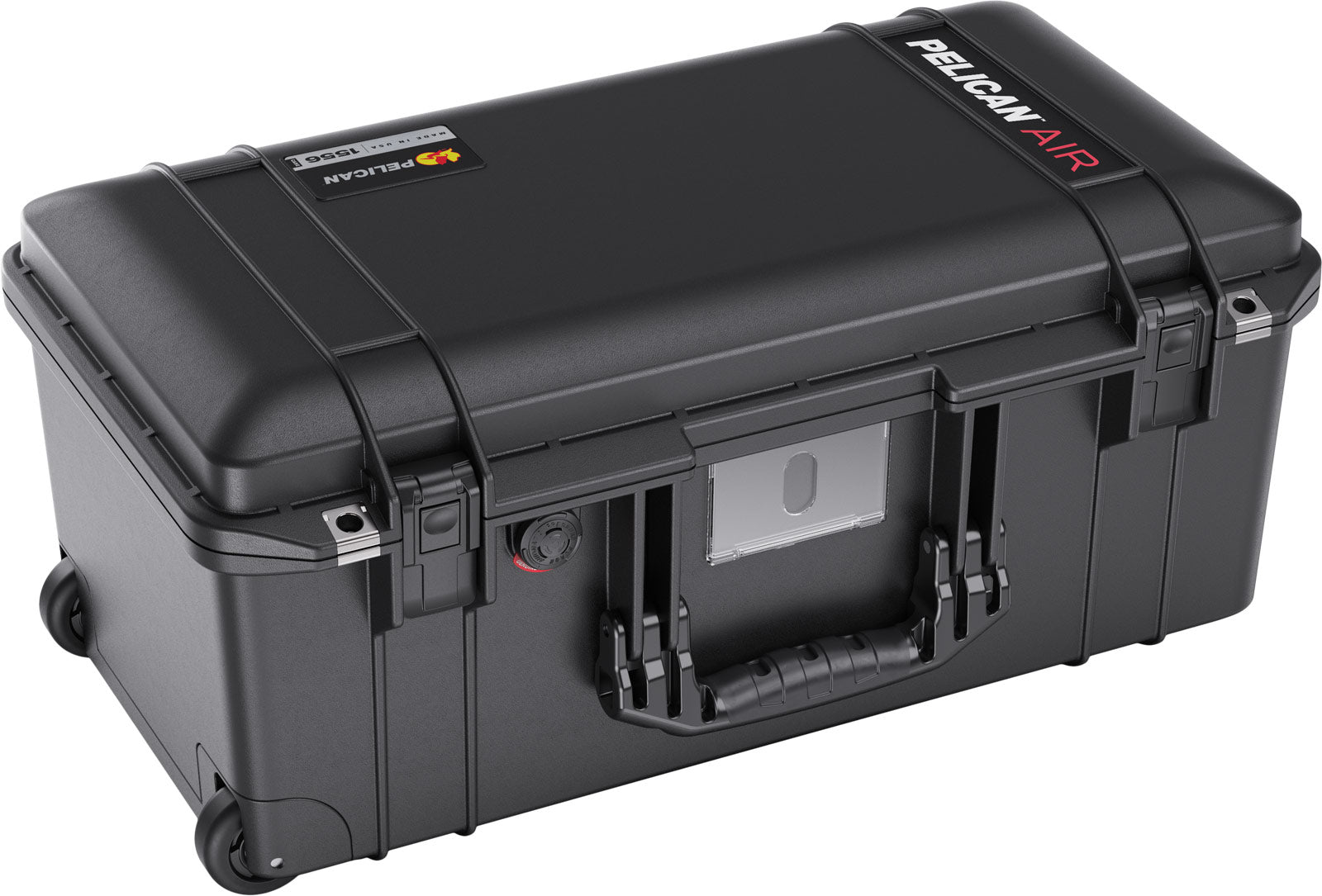

1556 Air Case

The 1556 Air Case is a mid-size lightweight protective case from the Pelican Air series, offering a balance of interior capacity and reduced carry weight. Built for professionals who need reliable protection for a broader range of equipment without the bulk of a full Protector case.

Ideal for:

• Camera systems, lenses, and accessories
• Drones, gimbals, and compact AV equipment
• Field electronics and portable instruments
• Medical devices and diagnostic tools

Why professionals choose this case:

• Air series construction — significantly lighter than equivalent Protector cases
• Impact, dust, and water resistant shell
• Secure latching for confident transport in demanding environments
• Stackable design for organised storage and deployment

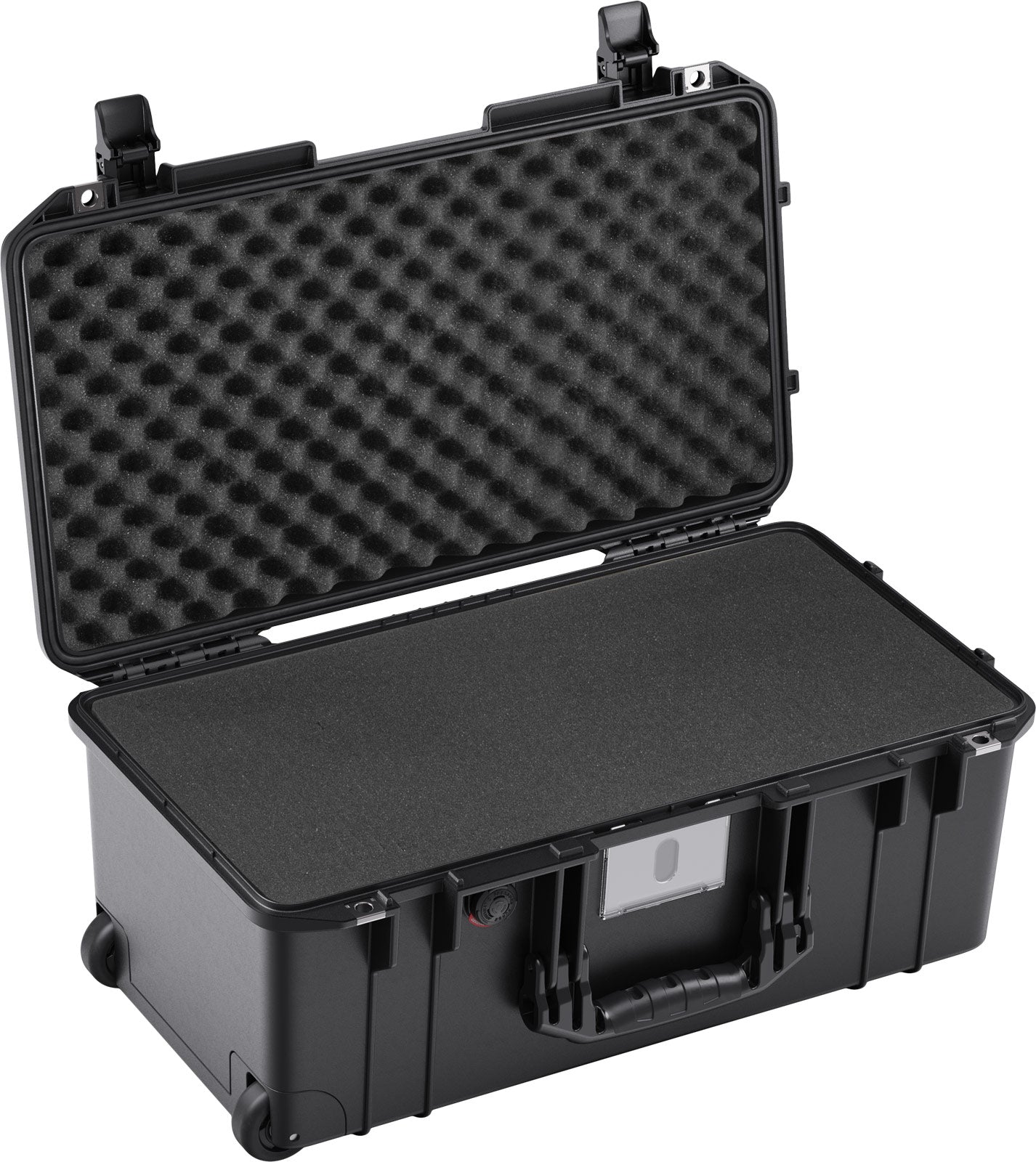

Custom foam inserts available:

ProTech Customs designs and precision-cuts foam inserts to match your exact equipment layout — ensuring a secure, professional fit-out every time.

Need this case fitted to your equipment? Contact ProTech Customs to discuss custom foam inserts for a precise, professional fit-out.

Specifications

Exterior Dimensions
23.43 x 13.52 x 10.57" (59.51 x 34.34 x 26.85 cm)
Padlock Hole Diameter: 0.31" (0.79 cm)

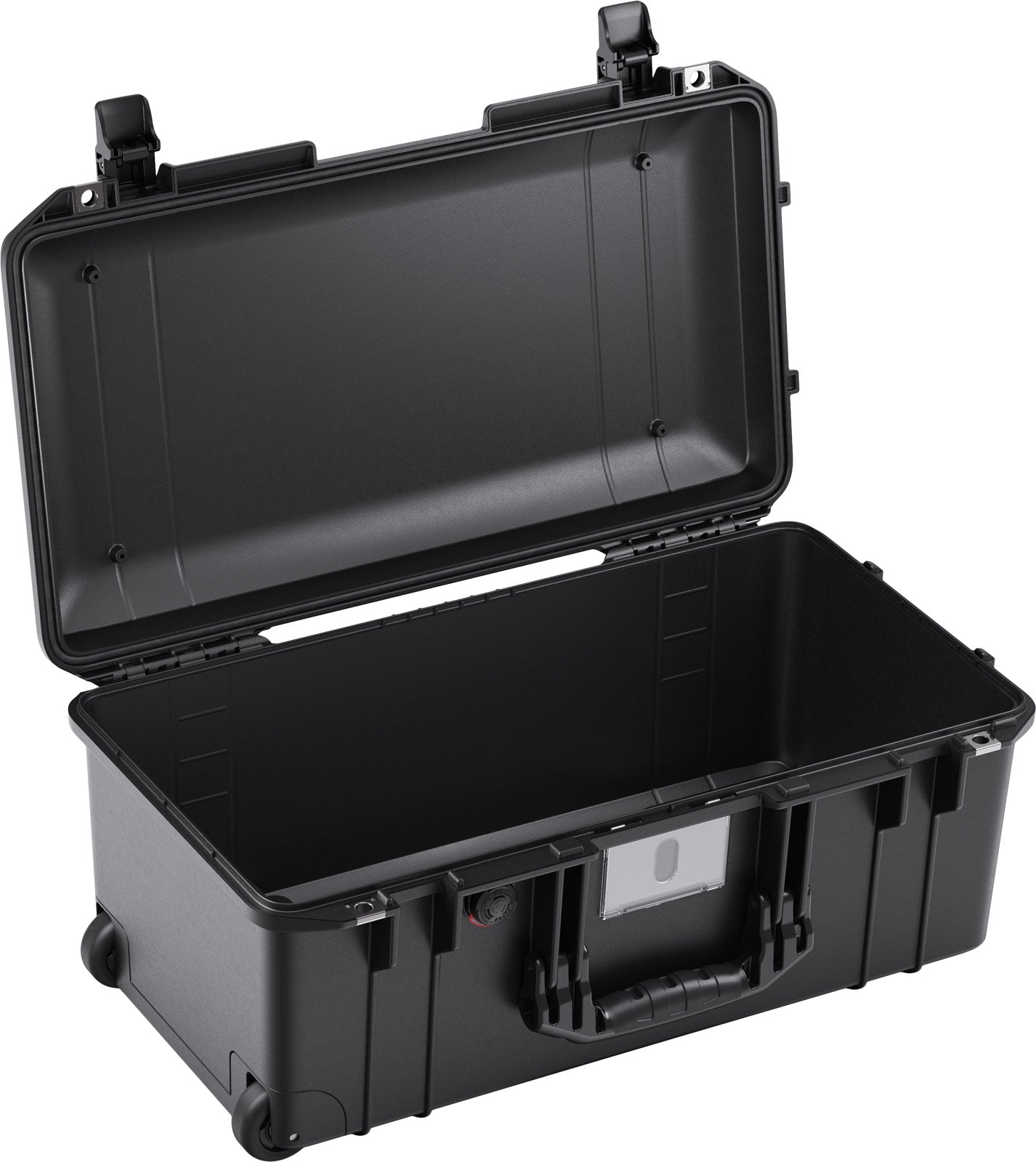

Interior Dimensions
21.63 x 10.76 x 8.97" (54.94 x 27.33 x 22.78 cm)

Weight
With Foam: 11.20 lbs (5.08 kg)
Without Foam: 9.75 lbs (4.42 kg)

Measurements
Interior Volume: 1.21 ft³ (0.03 m³)
Lid Depth: 2.00" (5.08 cm)
Bottom Depth: 6.97" (17.7 cm)
Total Depth: 8.97" (22.78 cm)
Buoyancy: 84.95 lbs (38.53 kg)

Materials
Body: Proprietary Polypropylene Blend | Latch: ABS | O-Ring: EPDM | Purge Body: ABS | Purge Vent: Hi-Flow Gore-Tex 3 Micron Hydrophobic Non-Woven | Purge O-Ring: 70 Shore Nitrile

Temperature Range
Minimum: 0°F (-18°C) | Maximum: 140°F (60°C)
